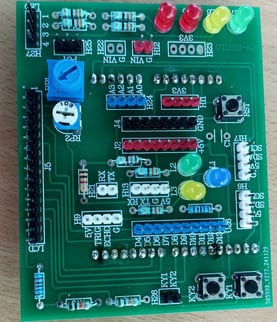

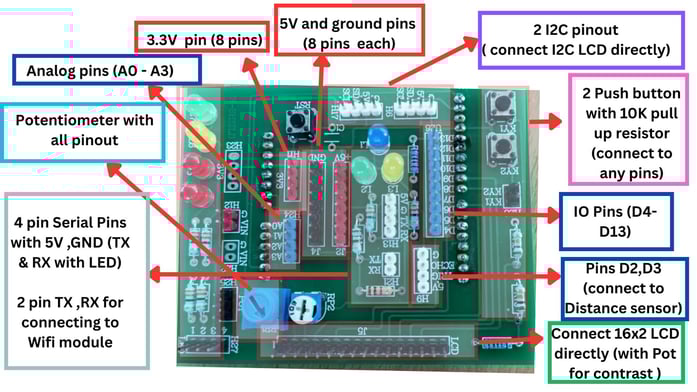

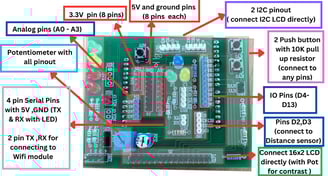

Features of Muceeshield (Compatible with Arduino Uno)

• Separate 5V , GND and 3.3V pins for connecting any sensor or boards with ease

• Coloured headers for Arduino pins , I2C ,Serial and Power supply pins for easier identification

• 4 independent LEDs (can be connected to any pins of Arduino)

• 2 independent Momentary push buttons with 10K ohms pull up resistors

• 16 X 2 or similar LCD connection (directly connect LCD) - Contrast pot also inbuilt

• Two I2C ports with 5V power supply for I2C LCD and other sensors

• One 10K ohms potentiometer which can be connected to 5V or 3.3V and any analog pins A0 - A5

• Status LED for Pin 13

• Pins for RX , TX for Bluetooth ,WiFi and other serial devices

• TX Pin from Arduino is reduced to 3V for connecting directly to WiFi or Bluetooth module Bluetooth ,WiFi (ESP8266 shield) and other serial devices

• Status LED for RX ,TX pins

• Reset button in the shield

• Also compatible with ESP8266 Arduino boards (WeMo's ESP8266 D1 R2 board) and STM32 Nucleo boards
